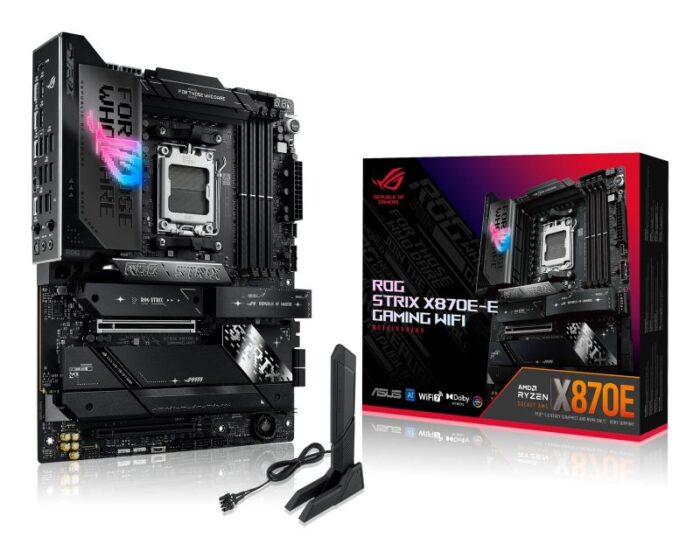

ASUS AM5 ROG STRIX X870E-E GAMING WIFI

Product Name: ASUS ROG STRIX X870E-E GAMING WIFI (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address: www.asus.com

Model Number: ROG STRIX X870E-E GAMING WIFI

EAN: 4711387724163

UPC: 197105724163

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS

Chipset: AMD X870E

CPU Interface: Socket AM5

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8400 (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 3 x PCIe Gen 5.0 x4‚2 x PCIe Gen 4.0 x4

On-Board LAN: 1 x Realtek 5Gb Ethernet‚ASUS LANGuard

Wireless NIC: Wi-Fi 7

Wireless Technology: 2×2 Wi-Fi 7 (802.11be)‚Supports 2.4/5/6GHz frequency band‚Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate

Bluetooth: v5.4

On-Board Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video: Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A: 9

Back USB 10Gbps Port(s) Type-C: 1

Back USB 20Gbps Port(s) Type-C: 1

Back USB 40Gbps Port(s) Type-C: 2

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 2

Back S/PDIF Output Port(s): 1

Back Other Port(s): 1 x Wi-Fi Module

Back Button(s): 1 x BIOS FlashBack‚1 x Clear CMOS

24-pin ATX Power: 1

8-pin ATX Power: 2

USB 2.0 Header(s): 3

USB 5Gbps Header(s): 2

USB 20Gbps Header(s): 1

Front Panel Audio Connector: 1

Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x CPU Over Voltage jumper‚1 x Thermal Sensor header

Internal Button(s): 1 x FlexKey‚1 x Start

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 28.5cm

Package Length: 36cm

Package Height: 9cm

Gross Weight: 2.87Kg

Special Features: The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads.

Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x Thermal pad for M.2 22110‚1 x ASUS Wi-Fi moving antennas‚1 x Cable ties pack‚1 x M.2 Q-Latch package‚2 x M.2 Q-Slides‚1 x ROG key chain‚1 x ROG Strix stickers‚5 x M.2 Rubbers‚1 x Quick start guide

Keywords: Motherboard‚X870E‚AM5‚DDR5‚WiFi‚Bluetooth
