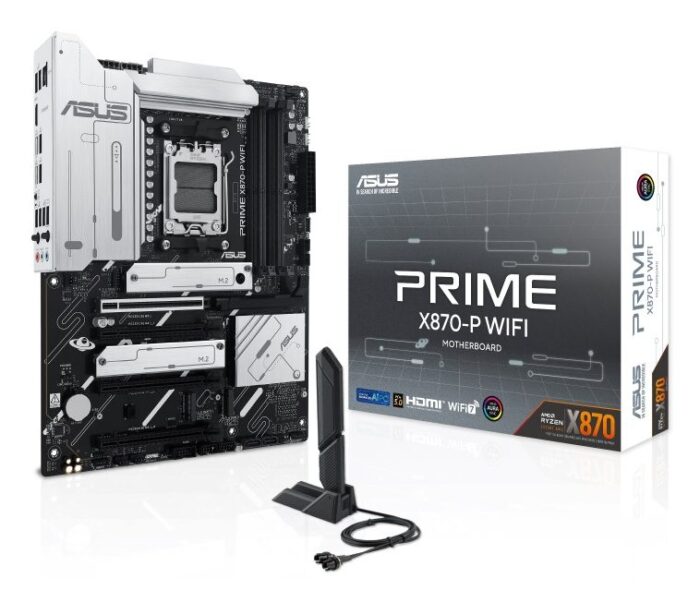

ASUS AM5 PRIME X870-P WIFI

Product Name: ASUS PRIME X870-P WIFI (Socket AM5/X870/DDR5/S-ATA 6Gb/s/ATX)

Web Address: www.asus.com

Model Number: PRIME X870-P WIFI

EAN: 4711387718148

UPC: 197105718142

Package Type: Retail

Warranty: 3 Years

BIOS: 256 Mb Flash ROM‚UEFI AMI BIOS

Chipset: AMD X870

CPU Interface: Socket AM5

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8000 (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 3

PCI Express 5.0 x16: 1

S-ATA 6Gb/s Port(s): 2

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚2 x PCIe Gen 4.0 x4‚1 x PCIe Gen 3.0 x4

On-Board LAN: 1 x Realtek 2.5Gb Ethernet‚ASUS LANGuard

Wireless NIC: Wi-Fi 7

Wireless Technology: 2×2 Wi-Fi 7 (802.11be)‚Supports 2.4/5/6GHz frequency band‚Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth: v5.4

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 4

Back USB 5Gbps Port(s) Type-A: 3

Back USB 10Gbps Port(s) Type-A: 1

Back USB 40Gbps Port(s) Type-C: 2

Back HDMI Port(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Other Port(s): 1 x Wi-Fi module

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 2

USB 2.0 Header(s): 2

USB 5Gbps Header(s): 1

USB 10Gbps Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x Clear CMOS header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305mm

Package Width: 27.5cm

Package Length: 36cm

Package Height: 7cm

Gross Weight: 2.04Kg

Special Features: ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x ASUS WiFi Q-Antenna‚1 x M.2 rubber package‚2 x Screw packages for M.2 SSD‚1 x Quick start guide

Keywords: Motherboard‚AM5‚X870‚DDR5‚WiFi‚Bluetooth
