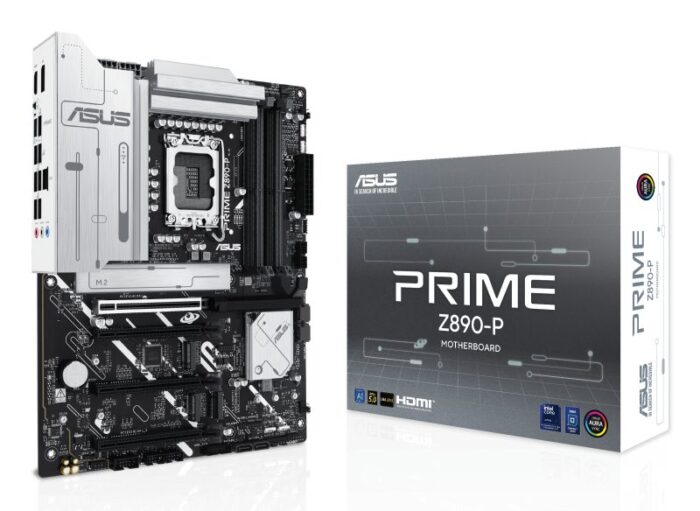

ASUS 1851 PRIME Z890-P

Product Name: ASUS PRIME Z890-P (Socket 1851/Z890/DDR5/S-ATA 6Gb/s/ATX)

Web Address: www.asus.com

Model Number: PRIME Z890-P

EAN: 4711387759103

UPC: 197105759107

Package Type: Retail

Warranty: 3 Years

BIOS: 256 (128+128) Mb Flash ROM‚UEFI AMI BIOS

Chipset: Intel Z890

CPU Interface: Socket 1851

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8400+ (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 3

PCI Express 5.0 x16: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚2 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA

LAN Speed: 1 x Realtek 2.5Gb Ethernet‚ASUS LANGuard

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 4

Back USB 5Gbps Port(s) Type-A: 2

Back USB 10Gbps Port(s) Type-A: 1

Back USB 20Gbps Port(s) Type-C: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 3

Back Button(s): 1 x BIOS FlashBack

24-pin ATX Power: 1

8-pin ATX Power: 2

USB 2.0 Header(s): 2

USB 5Gbps Header(s): 2

USB 10Gbps Header(s): 1

Thunderbolt Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 3 x Addressable Gen2 headers‚1 x Aura RGB header

Form Factor: Standard ATX

Product Width: 244mm

Product Length: 305nn

Package Width: 27cm

Package Length: 35.5cm

Package Height: 6.7cm

Gross Weight: 1.76Kg

Special Features: ASUS 5X PROTECTION III‚ASUS Q-Design‚ASUS Thermal Solution‚ASUS EZ DIY‚Aura Sync

Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x M.2 rubber package‚2 x Screw packages for M.2 SSD‚1 x Quick start guide

Keywords: Motherboard‚Z890‚1851‚DDR5
