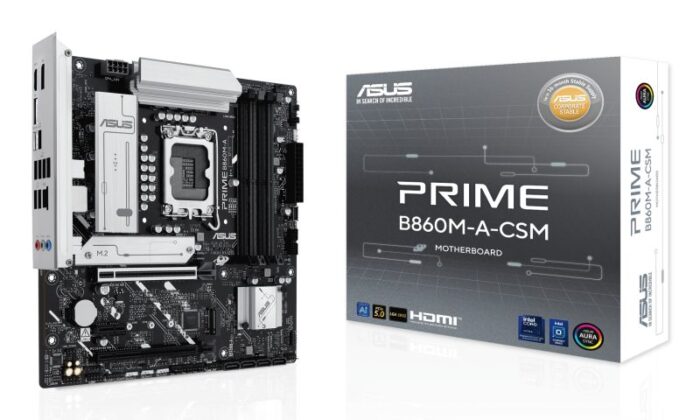

ASUS 1851 PRIME B860M-A-CSM M-ATX

Product Name: ASUS PRIME B860M-A-CSM (Socket 1851/B860/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address: www.asus.com

Model Number: PRIME B860M-A-CSM

EAN: 4711387819869

UPC: 197105819863

Package Type: Retail

Warranty: 3 Years

BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Chipset: Intel B860

CPU Interface: Socket 1851

CPU Support: https://www.asus.com/motherboards-components/motherboards/csm/prime-b860m-a-csm/helpdesk_qvl_cpu?model2Name=PRIME-B860M-A-CSM

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 8666 (O.C.)

Max. Memory Support: 256GB

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

PCI Express 4.0 x1: 1

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 1 x PCIe Gen 5.0 x4‚1 x PCIe Gen 4.0 x4

LAN Speed: 1 x Realtek 2.5Gb Ethernet‚ASUS LANGuard

On-Board Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video: Processor with integrated graphics is required

Back USB 2.0 Port(s): 4

Back USB 5Gbps Port(s) Type-A: 2

Back USB 10Gbps Port(s) Type-A: 1

Back USB 20Gbps Port(s) Type-C: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 2

Back LAN Port(s): 1

Back Audio Jack(s): 3

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 1

USB 5Gbps Header(s): 1

USB 10Gbps Header(s): 1

Thunderbolt Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 3 x Addressable Gen 2 headers‚1 x Aura RGB header

Form Factor: Micro ATX

Product Width: 244mm

Product Length: 244mm

Package Width: 27.5cm

Package Length: 27.5cm

Package Height: 6.8cm

Gross Weight: 1.32Kg

Special Features: ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Package Contents: Motherboard‚2 x SATA 6Gb/s cables‚1 x M.2 rubber package‚1 x Screw package for M.2 SSD‚1 x ACC Express Activation Key Card‚1 x Quick start guide

Keywords: Motherboard‚DDR5‚M-ATX
