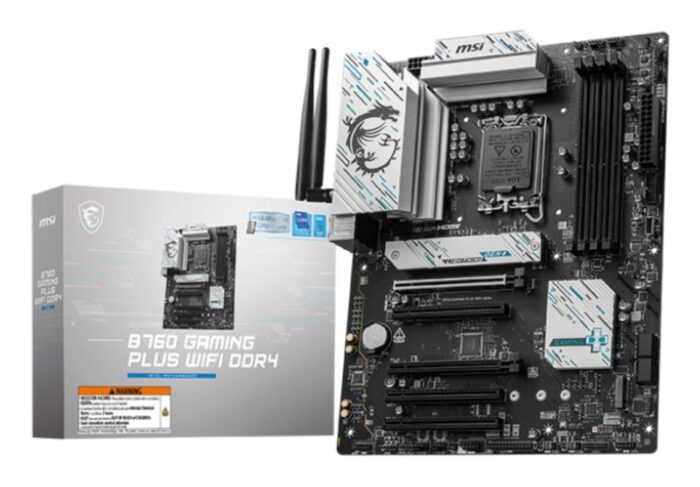

MSI 1700 B760 GAMING PLUS WIFI DDR4

Product Name: MSI B760 GAMING PLUS WIFI DDR4 (Socket 1700/B760/DDR4/S-ATA 6Gb/s/ATX)

Web Address: uk.msi.com

Model Number: B760 GAMING PLUS WIFI DDR4

EAN: 4711377247900

UPC: 824142377321

Package Type: Retail

Warranty: 3 Years

Chipset: Intel B760

CPU Interface: Socket 1700

CPU Support: https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI-DDR4/support#cpu

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR4 5333 (O.C.)

Max. Memory Support: 128GB

PCI Express 3.0 x16: 3

PCI Express 4.0 x16: 2

S-ATA 6Gb/s Port(s): 4

M.2 Socket(s): 1 x PCIe Gen 4.0 x4‚1 x PCIe Gen 4.0 x4/SATA

On-Board LAN: Realtek RTL8125BG 2.5G LAN

Wireless NIC: Wi-Fi 6E

Wireless Technology: The Wireless module is pre-installed in the M.2 (Key-E) slot‚Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps‚Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth: v5.3

On-Board Audio: Realtek ALC897 Codec‚7.1-Channel High Definition Audio‚Supports S/PDIF output

On-Board Video: Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port: 1

Back USB 2.0 Port(s): 4

Back USB 3.2 Port(s) Type-A Gen 2: 2

Back USB 3.2 Port(s) Type-C Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 5

Back S/PDIF Output Port(s): 1

Back Other Port(s): Wi-Fi / Bluetooth

24-pin ATX Power: 1

8-pin ATX Power: 2

USB 2.0 Header(s): 4

USB 5Gbps Header(s): 3

Parallel Port Header(s): 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

Internal Other Port(s): 2 x Addressable V2 RGB LED Connector‚1 x RGB LED Connector‚4 x EZ Debug LED

Form Factor: Standard ATX

Product Width: 243.84mm

Product Length: 304.8mm

Package Width: 27cm

Package Length: 35cm

Package Height: 6.5cm

Gross Weight: 1.51Kg

Special Features: Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket.‚Supports DDR4 Memory, up to 5333+(OC) MHz.‚Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost.‚Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience.‚Lightning-Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G.‚2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.‚High Quality PCB: 6-layer PCB made by 2oz thickened copper.‚Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents: Motherboard‚Quick Installation Guide‚1 x M.2 Screw / Standoff Sets‚1 x SATA Cable‚Wi-Fi Antenna‚I/O Shield

Keywords: Motherboard‚1700‚B760‚DDR4‚Wi-Fi‚Bluetooth
